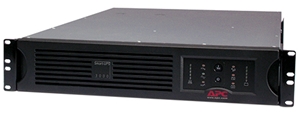

APC Smart UPS 3000VA, 2700W, USB, Serial RM 2U 230V (SUA3000RMI2U)

    2,990,000

    Mã hàng: SUA3000RMI2U

    Thông tin nhanh về sản phẩm

    SUA3000RMI2U
    APC Smart-UPS 3000VA/ 2700W, USB & Serial, Rackmount 2U, 230V

    UPS ĐÃ QUA SỬ DỤNG, CHƯA BAO GỒM ẮC QUY.
    BẢO HÀNH TRỌN BỘ 12 THÁNG KHI MUA KÈM BỘ ẮC QUY.

    Tặng dây nguồn input C19 và 2 dây nguồn output C13-C14.

    THÔNG TIN THAY THẾ ẮC QUY CHO UPS (BATTERY REPLACEMENT)
    Tên, số lượng bộ ắc quy lắp mặc định
    (Replacement battery cartridge)
    RBC43
    x 01
    Bộ sạc & Tổ ắc quy lắp mặc định
    (UPS charger & Internal battery pack)
    48VDC/ 169W
    =2x 4x 12Vx 5Ah
    =480VAh
    Tủ ắc quy mở rộng
    (External extended battery cabinet)
    Không có jack mở rộng
    Nhưng có thể lắp ắc quy lớn bên ngoài
    Bộ ắc quy dung lượng tối đa 48V-200Ah (WPL200-12N)
    Thời gian sạc lại cho khối ắc quy mặc định
    (Typical recharge time for internal battery pack)
    3 giờ
    Ắc quy khuyến nghị thay thế cho UPS
    (Recommend battery replacement)
    WP5-12, hoặc
    WPL5-12


    Sản phẩm tương tự
    Thông số kỹ thuật

    Output

    Output Power Capacity
    2700 Watts / 3000 VA
    Max Configurable Power
    2700 Watts / 3000 VA
    Nominal Output Voltage
    230V
    Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
    Output Voltage Distortion
    Less than 5% at full load
    Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Topology
    Line Interactive
    Waveform Type
    Sine wave
    Output Connections
    (8) IEC 320 C13 IEC 320 C13
    (1) IEC 320 C19 IEC 320 C19
    (2) IEC Jumpers

    Input

    Nominal Input Voltage
    230V
    Input Frequency
    50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections
    IEC-320 C20
    Schuko CEE 7 / EU1-16P
    British BS1363A
    Input voltage range for main operations
    160 - 286V
    Input voltage adjustable range for mains operation
    151 - 302V

    Batteries & Runtime

    Battery Type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time
    3 hour(s)
    Replacement Battery
    RBC43
    RBC™ Quantity
    1
    Runtime Graph
    Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

    Communications & Management

    Interface Port(s)
    DB-9 RS-232, SmartSlot, USB
    Available SmartSlot™ Interface Quantity
    1
    Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
    Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
    Emergency Power Off (EPO)

    Surge Protection and Filtering

    Surge energy rating
    480 Joules
    Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    Maximum Height
    89.00 mm
    Maximum Width
    483.00 mm
    Maximum Depth
    660.00 mm
    Rack Height
    2U
    Net Weight
    43.64 KG
    Shipping Weight
    54.00 KG
    Shipping Height
    250.00 mm
    Shipping Width
    600.00 mm
    Shipping Depth
    980.00 mm
    Master Carton Units
    1.00
    Color
    Black
    Units per Pallet
    8.00

    Environmental

    Operating Environment
    0 - 40 °C
    Operating Relative Humidity
    0 - 95%
    Operating Elevation
    0-3000 meters
    Storage Temperature
    -15 - 45 °C
    Storage Relative Humidity
    0 - 95%
    Storage Elevation
    0-15000 meters
    Audible noise at 1 meter from surface of unit
    47.00 dBA
    Online Thermal Dissipation
    400.00 BTU/hr

    Conformance

    Regulatory Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
    Standard Warranty
    2 years repair or replace, optional on-site warranties available, optional extended warranties available

    Sustainable Offer Status

    RoHS
    Compliant
    PEP
    Available in Documentation tab
    EOLI
    Available in Documentation tab
    Other Environmental Compliance
    China RoHS
